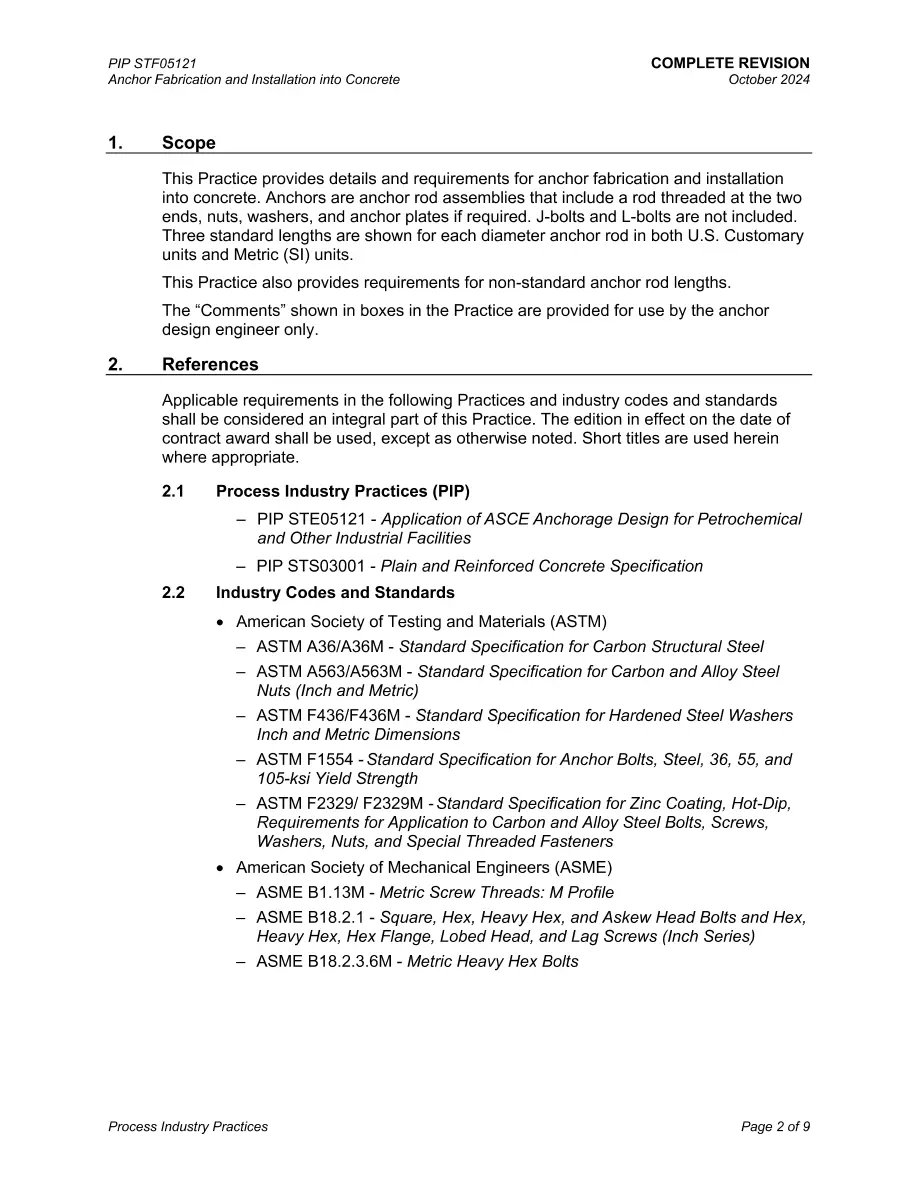

This Practice provides details and requirements for anchor fabrication and installation into concrete. Anchors are anchor rod assemblies that include a rod threaded at the two ends, nuts, washers, and anchor plates if required. J-bolts and L-bolts are not included. Three standard lengths are shown for each diameter anchor rod in both U.S. Customary units and Metric (SI) units. This Practice also provides requirements for non-standard anchor rod lengths. The “Comments” shown in boxes in the Practice are provided for use by the anchor design engineer only.
Original price was: $125.00.$62.00Current price is: $62.00.

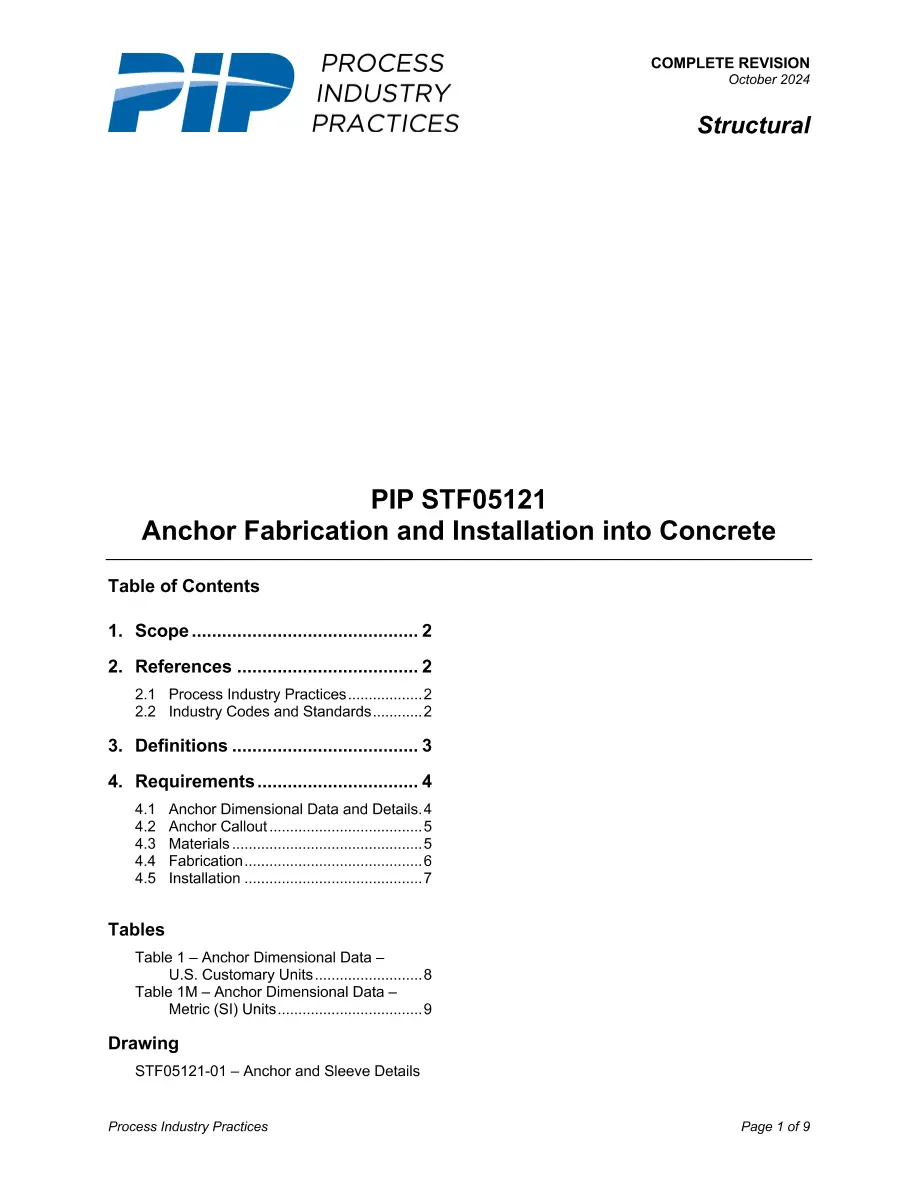

Anchor Fabrication and Installation into Concrete [Complete Revision]
Process Industry Practices , 10/01/2024
Pages: 12
Original price was: $125.00.$62.00Current price is: $62.00.

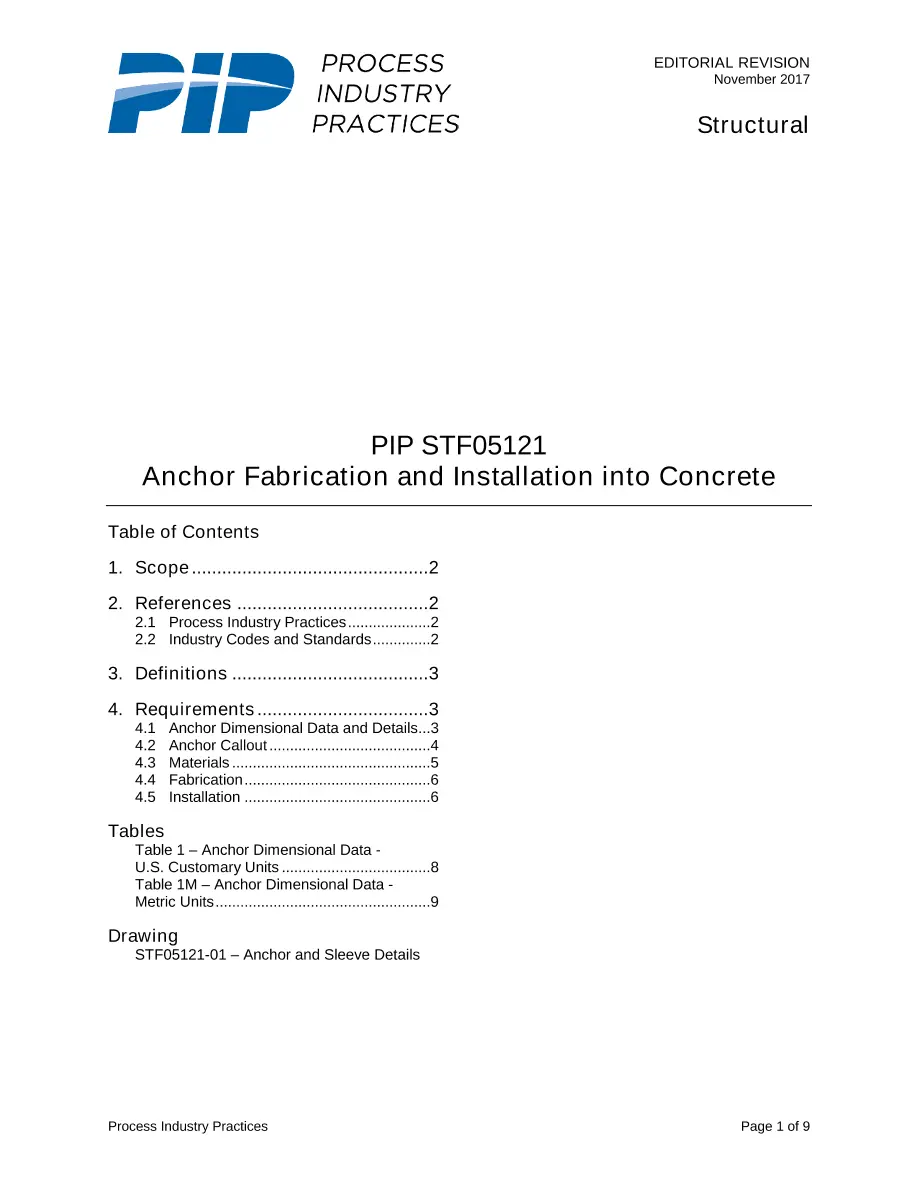

Anchor Fabrication and Installation Into Concrete [Editorial Revision]
Process Industry Practices , 11/01/2017
Pages: 12

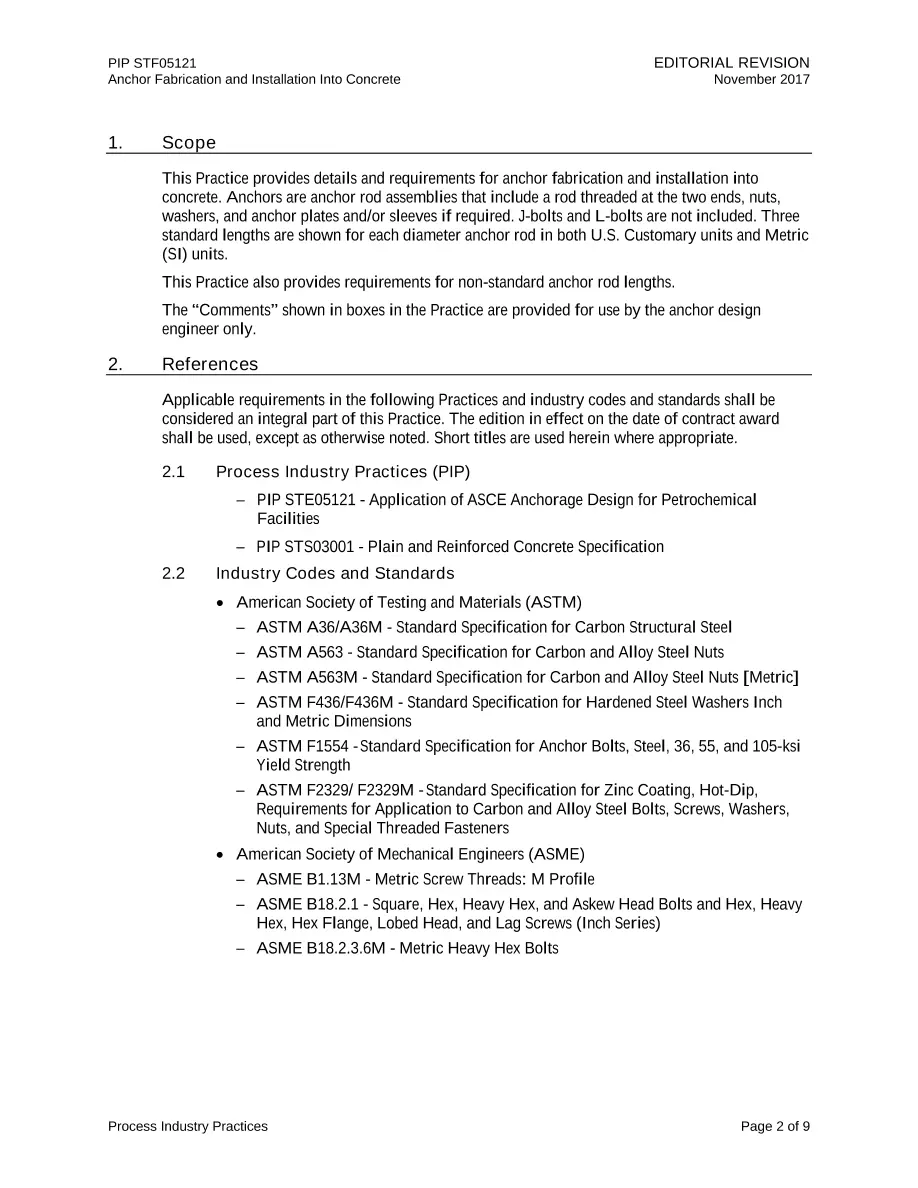

This Practice provides details and requirements for anchor fabrication and installation into concrete. Anchors are anchor rod assemblies that include a rod threaded at the two ends, nuts, washers, and anchor plates and/or sleeves if required. J-bolts and L-bolts are not included. Three standard lengths are shown for each diameter anchor rod in both U.S. Customary units and Metric (SI) units.
This Practice also provides requirements for non-standard anchor rod lengths.
Original price was: $125.00.$62.00Current price is: $62.00.
Fabrication and Installation of Anchor Bolts [Technical Correction]
Process Industry Practices , 10/01/2006
This Practice provides details and requirements for anchor bolt fabrication and installation to fabricators and installers of anchor bolts. This Practice also provides information for the design engineer to standardize bolt lengths.
